Precision Diaphragm Chuck VMCHP

By SwissChuck AG

The pneumatically actuated diaphragm chuck family 6VMCHP guarantees clamping of workpieces at the highest level of precision and delivers a repeatability of ≤ 0.002 mm.

Overview

The pneumatic diaphragm chucks of the 6VMCHP series clamp workpieces at the highest precision. This chuck repeatably achieves a concentricity of ≤ 0.002 mm. Due to the force distribution over six jaws, plus the elasticity of the diaphragm, this chuck is particularly suitable for clamping low-deformation workpieces.

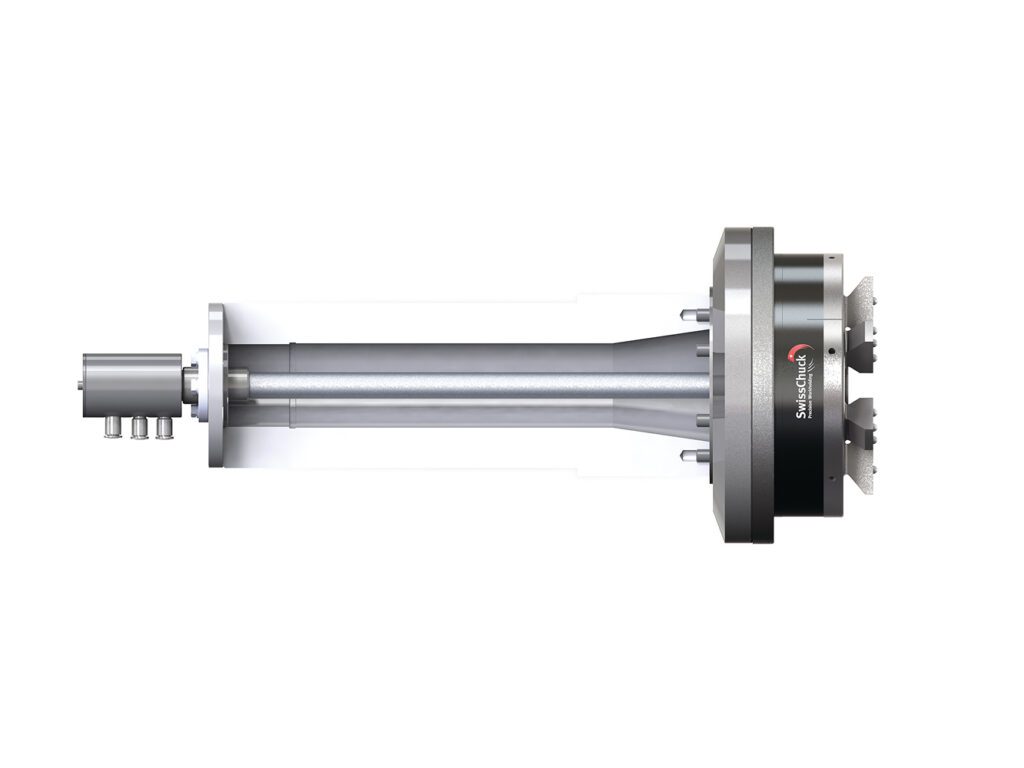

The diaphragm chuck is operated via a rotary feed unit, which is screwed, through the machine spindle, directly into the chuck body.
