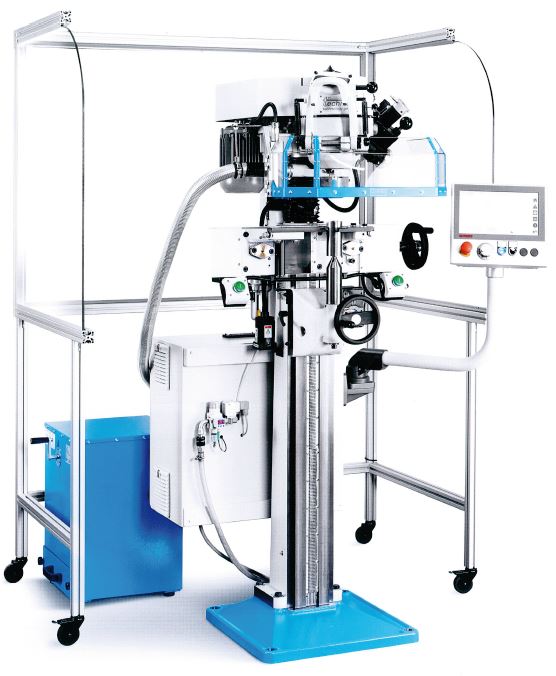

Description
TECHNICAL DATA:
- Center hole diameter: 1.5-60 mm
- Workpiece clamping diameter: 3-140 mm
- Workpiece length: 50-1100 mm
- Workpiece weight: max. 170 kg
- Centering hole angle: 60°
- Grinding head adjustment: max. 140 mm
- Grinding spindle speed: infinitely variable 5’000-45’000 1/min
- Dressing infeed 0.01-0.03 mm
- Weight of the machine: approx. 490 kg
STANDARD EQUIPMENT – INCLUDED
- Back center standard D=52×150 mm
- Back center short D=62×56 mm
- Dial indicator holder long
- Dial indicator Käfer C500/10/0.01/D=58 mm M2S
- Control mandrel with dial indicator holder
- Dressing diamond multi-grain
ADDITIONAL OPTIONS – NOT INCLUDED:
- Various custom-specific centers
- Grinding wheel holders
- Life center
- Three-jaw chuck
- Magnetic chuck
- Dust extraction unit
TERMS & DELIVERY:
- Request firm quotation
- Check for inventory
- Price may vary due to currency exchange fluctuations
